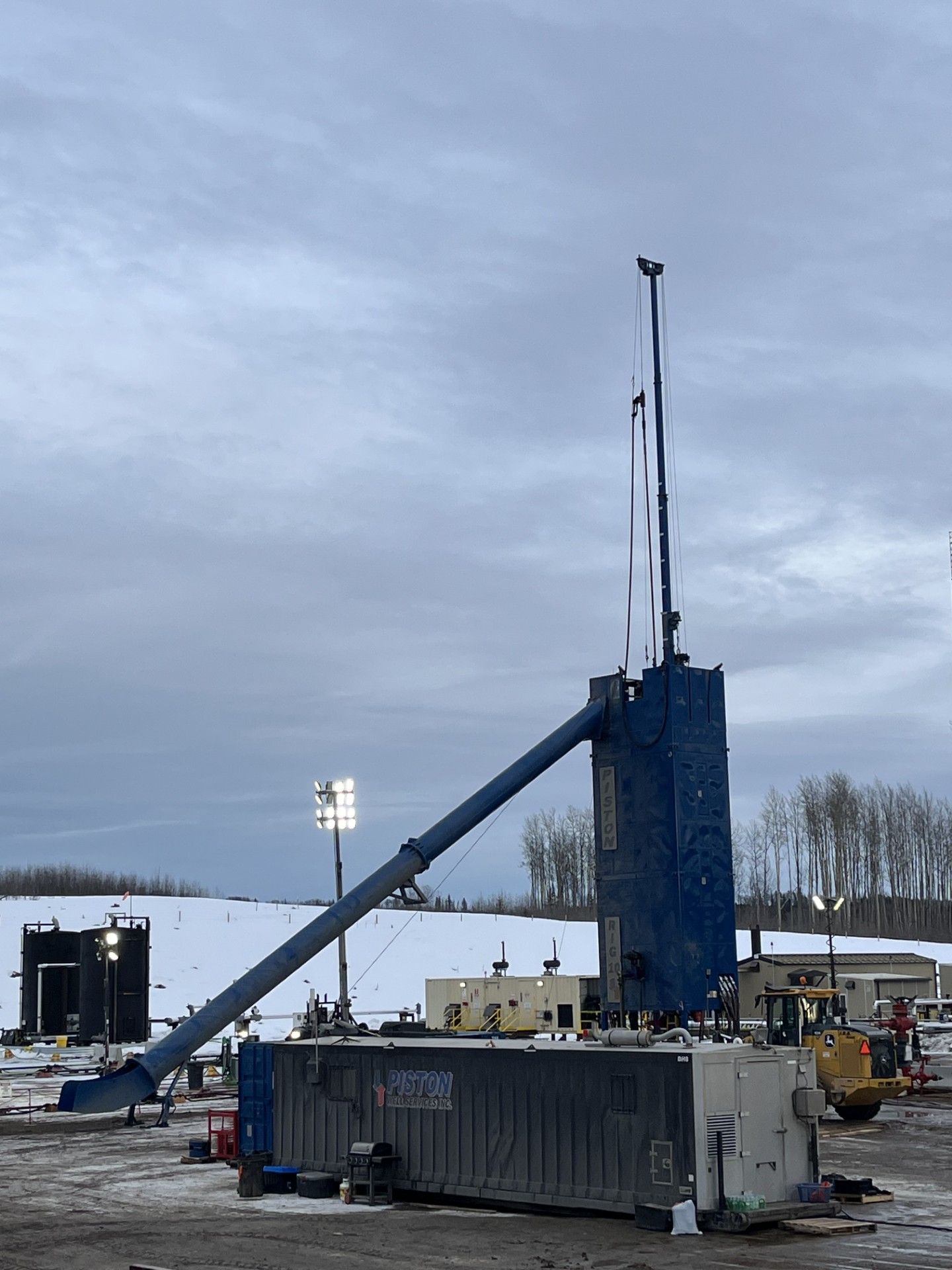

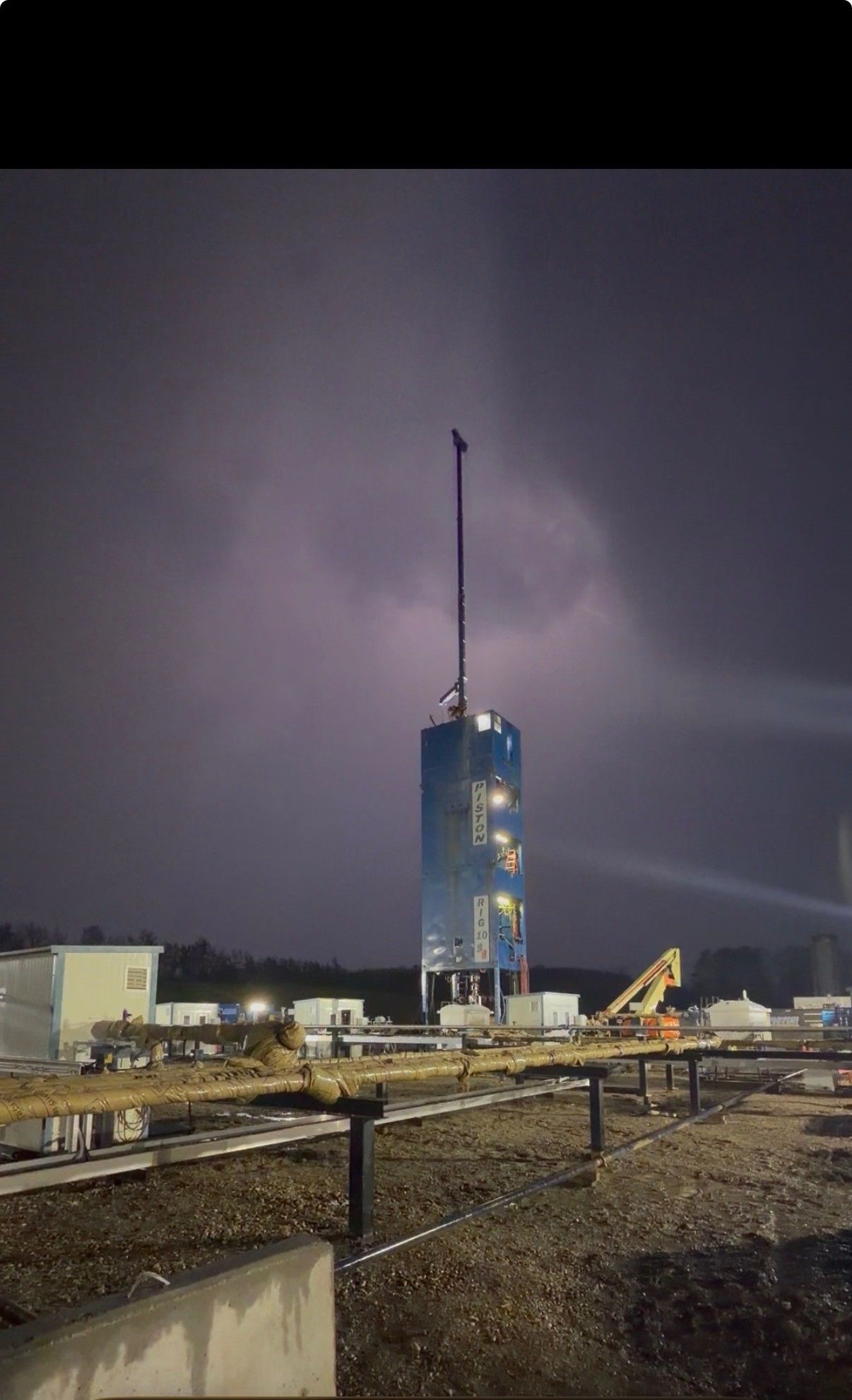

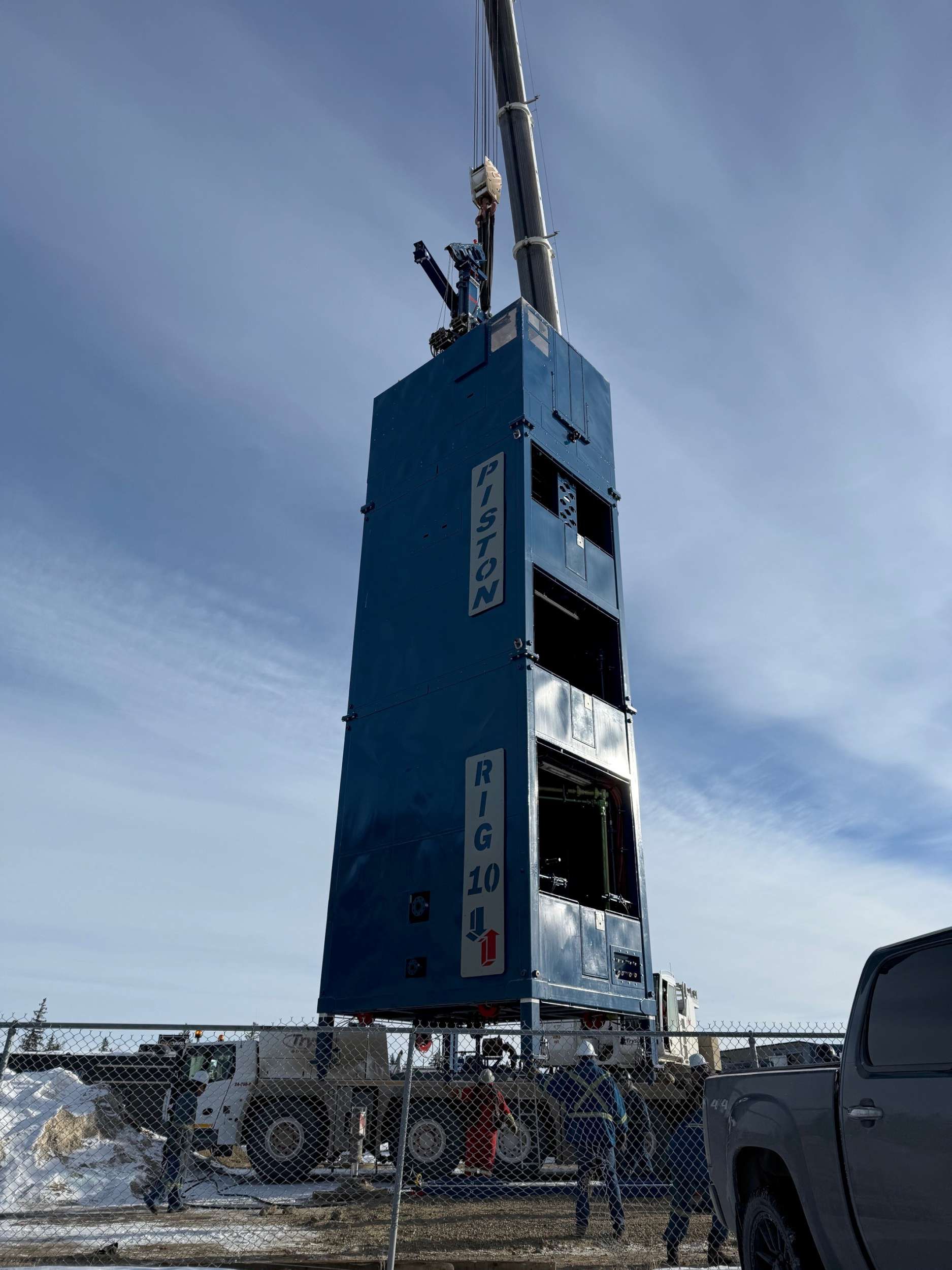

230K HWU- Rig 10

Piston's all new Free Standing, Single Pick, Fully Enclosed Hydraulic Workover Unit is the first of its kind in Canada designed to MAXIMIZE SAFETY & EFFICIENCY in jointed pipe milling.

Download Info

230K HWU Benefits

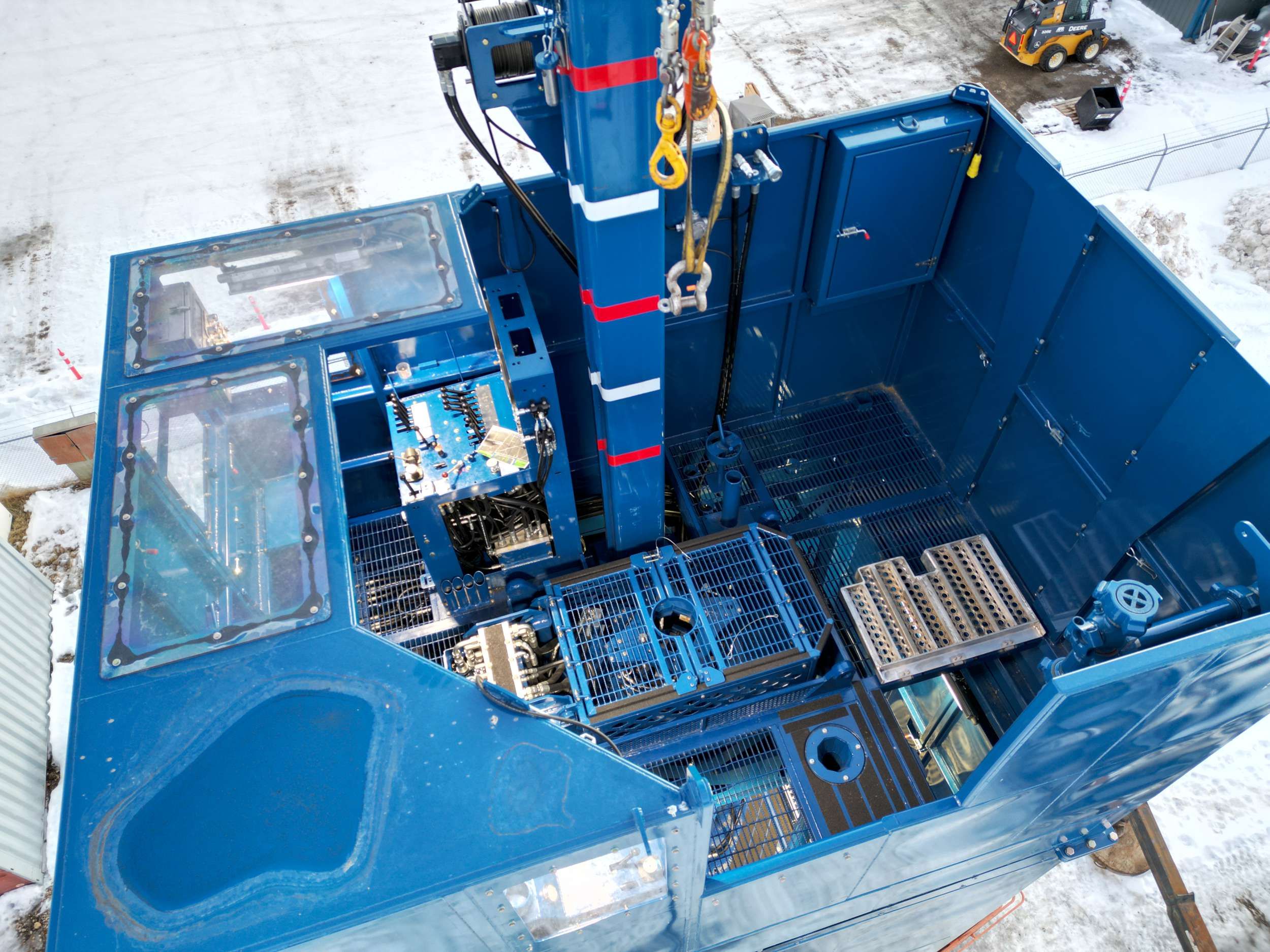

  • Fully enclosed unit
  • Single pick
  • Free standing and integrated sub structure
  • Integrated Fluid Containment
  • High torque rotary system
  • Integrated gin pole
  • Automated and remotely operated pump
  • Real time data management



230K HWU Specifications


Max Hoist 102,000 daN / 230,000 LBS
Max Snub Force 57,800 daN / 130,000 LBS
Rotary 10,000 FT-LBS, 120 RPM
Tubular Handling Integrated Lay-Down Line System
Trip Speed 60 Joints / hr. @ 85,000 daN / 191,000 LBF
Drive System 2 Leg, 12' Stroke
Pump Dual 1,050 HP 10K
Total Unit Weight 49,895 KG / 110,000 LBS
BOP's 7-₁⁄₁₆", 10K Class 3 Ram to Ram BOP Stack w/Shears. 3" Flow Cross w/addl. Lower Pipe Rams below Flow Cross, 5-station, 120-gallon Accumulator
Power Pack 800 hp
Mast 60 ft X 5,000 LBS with 2 Counter-Balance Winches and 1 Heavy Winch
Pipe Size 26.67mm - 139.7mm / 1.050" - 5.5"
Thru Bore 179.4mm / 7-₁⁄₁₆"
Slips Nu Energy 230k Slip Bowls
Mud Tank 40m³ - 2 Compartment and pill tank, all with agitators. Chemical injection system & heated tote storage
